Angular : Email Client - 1-5. 인증모듈작성 - Sign up, Sign in Template과 Form Control 작성하기

1. 이 포스트는 Email Client를 작성하는 시리즈의 일부이다

  1-1 이번 포스트는 가입과 로그인 화면을 생성하고 그에 맞는 Form Control을 작성한다.

  1-2 그런 후 검증 로직을 다음 포스트에서 추가한다.



2. Sign Up과 Sign In 화면은 상당히 유사하다. 그래서 재사용했다.

  2-0 ReactiveForm 을 사용하려면 module에 import해야 한다. Auth 모듈에 다음과 같이 추가한다.



import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { SignInComponent } from './sign-in/sign-in.component';
import { SignUpComponent } from './sign-up/sign-up.component';
import { AuthRoutingModule } from './auth.routing.module';
import { ReactiveFormsModule } from '@angular/forms';


@NgModule({
  declarations: [SignInComponent, SignUpComponent],
  imports: [
    CommonModule,
    AuthRoutingModule,
    ReactiveFormsModule
  ]
})
export class AuthModule { }



  2-1 Sign In 컴포넌트 작성

    2-1-0 기본적으로 검증은 Required, 길이가 각 4-20자 이내로 지정하였다.

    2-1-1 template 을 다음과 같이 작성한다.



<h1 class="my-5">Log In</h1>
<form class="col-sm-8" [formGroup]="loginGroup">
  <div class="form-group">
    <label class="form-label" for="username">Username</label>
    <input id="username" class="form-control" type="text" formControlName="username">
  </div>
  <div class="form-group">
    <label class="form-label" for="password">Password</label>
    <input id="password" class="form-control" type="text" formControlName="password">
  </div>
  <button class="btn btn-secondary">Submit</button>
</form>



    2-1-2 클래스에 template에서 사용한 FormControl을 생성한다.



import { Component, OnInit } from '@angular/core';
import { FormGroup, FormBuilder, Validators } from '@angular/forms';

@Component({
  selector: 'app-sign-up',
  templateUrl: './sign-up.component.html',
  styleUrls: ['./sign-up.component.css']
})
export class SignUpComponent implements OnInit {

  registrationGroup: FormGroup

  constructor(private formBuilder: FormBuilder) {
    this.registrationGroup = this.formBuilder.group({
      username: ['', [
        Validators.required,
        Validators.minLength(4),
        Validators.maxLength(10)
      ]],
      password: ['', [
        Validators.required,
        Validators.minLength(4),
        Validators.maxLength(10)
      ]],
      passwordConfirmation: ['', [
        Validators.required,
        Validators.minLength(4),
        Validators.maxLength(10)
      ]]
    })
  }

  ngOnInit(): void {
  }
}



  2-2 Sign up 컴포넌트 작성하기

    2-2-1 Sign up Template은 Sign In에 Control이 하나 더 추가되었다.



<h1 class="my-5">Create an Account</h1>
<form class="col-sm-8" [formGroup]="registrationGroup">
  <div class="form-group">
    <label class="form-label" for="username">Username</label>
    <input id="username" class="form-control" type="text" formControlName="username">
  </div>
  <div class="form-group">
    <label class="form-label" for="password">Password</label>
    <input id="password" class="form-control" type="password" formControlName="password">
  </div>
  <div class="form-group">
    <label class="form-label" for="passwordConfirmation">Password Confirmation</label>
    <input id="passwordConfirmation" class="form-control" type="password" formControlName="passwordConfirmation">
  </div>
  <button class="btn btn-secondary">Submit</button>
</form>



    2-2-2 SignUp 클래스이다.



import { Component, OnInit } from '@angular/core';
import { FormGroup, FormBuilder, Validators } from '@angular/forms';

@Component({
  selector: 'app-sign-in',
  templateUrl: './sign-in.component.html',
  styleUrls: ['./sign-in.component.css']
})
export class SignInComponent implements OnInit {

  loginGroup: FormGroup

  constructor(private formBuilder: FormBuilder) {
    this.loginGroup = this.formBuilder.group({
      username: ['', [
        Validators.required,
        Validators.minLength(4),
        Validators.maxLength(10)
      ]],
      password: ['', [
        Validators.required,
        Validators.minLength(4),
        Validators.maxLength(10)
      ]],
    })
  }

  ngOnInit(): void {
  }
}



3. 테스트 하기

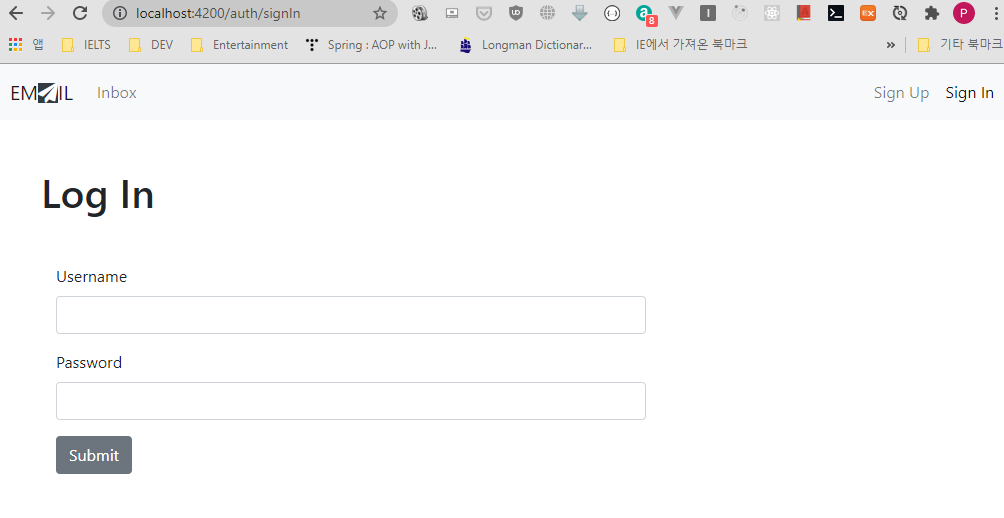

  3-1 로그인 화면

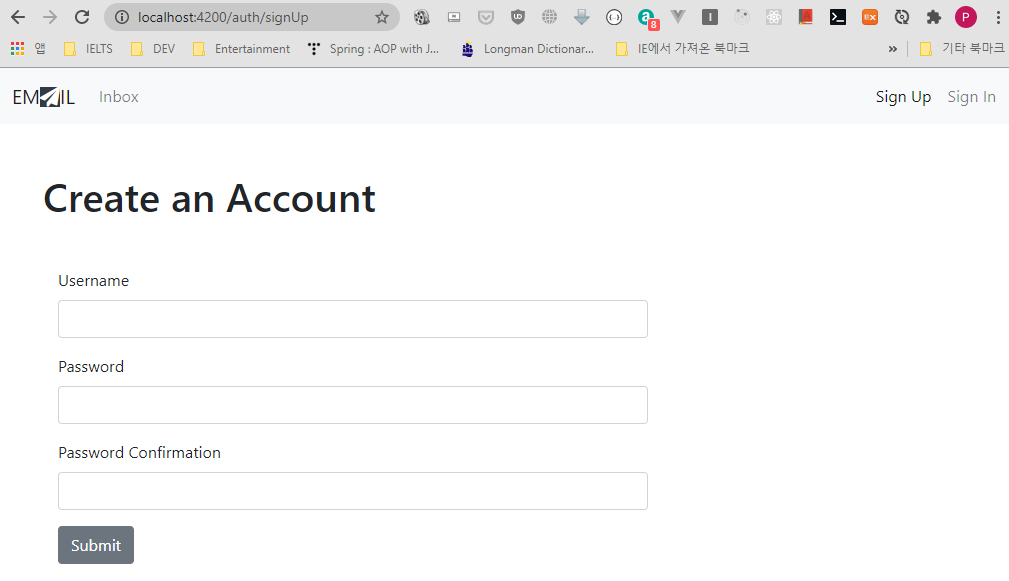

  3-2 가입화면
