Spring REST : Spring REST Docs 사용하기

1. Spring REST Docs는 스프링에서 지원하는 공식 documentatino라이브러리이다.

  1-1 이 라이브러리의 장점은 테스트코드를 작성하면서 동시에 문서를 작성할 수 있다는 점이다.

  1-2 즉 테스트를 실패하는 경우 문서도 다시 작성해야 하는 문제를 해결해 준다.



2. 절차

  2-1 우선 아래 의존성을 추가한다. 이것은 webflux, restAssured를 사용할 때는 해당 의존성을 추가해야 한다.

  2-2 asciidoctor-maven-plugin을 추가한다. 이것은 각 테스트 코드에서 설정한 정보를 snippet이라는 것으로 저정한다.

  2-3 maven-resources-plugin은 특정 폴더의 데이터를 특정 폴더로 복사하는 단순한 기능을 한다.

    2-3-1 snippet이 생성되는 target/gendrated-docs의 파일을 최종 jar에 포함되도록 static/docs에 복사한다.

    2-3-2 이 과정은 snippet이 생성된 후에 실해되어야 하므로 반드시 aciidoctor-maven-plugin 뒤에 위치해야 한다.




    <dependency>
      <groupId>org.springframework.restdocs</groupId>
      <artifactId>spring-restdocs-mockmvc</artifactId>
      <version>${spring-restdocs.version}</version>
      <scope>test</scope>
    </dependency>

  ...
  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.8.1</version>
        <configuration>
          <annotationProcessorPaths>
            <path>
              <groupId>org.mapstruct</groupId>
              <artifactId>mapstruct-processor</artifactId>
              <version>${mapstruct.version}</version>
            </path>
            <path>
              <groupId>org.projectlombok</groupId>
              <artifactId>lombok</artifactId>
              <version>${lombok.version}</version>
            </path>
          </annotationProcessorPaths>
          <compilerArgs>
            <compilerArg>
              -Amapstruct.defaultComponentModel=spring
            </compilerArg>
          </compilerArgs>
        </configuration>
      </plugin>
      <plugin>
        <groupId>org.asciidoctor</groupId>
        <artifactId>asciidoctor-maven-plugin</artifactId>
        <version>2.0.0</version>
        <executions>
          <execution>
            <id>generate-docs</id>
            <phase>prepare-package</phase>
            <goals>
              <goal>process-asciidoc</goal>
            </goals>
            <configuration>
              <backend>html</backend>
              <doctype>book</doctype>
            </configuration>
          </execution>
        </executions>
        <dependencies>
          <dependency>
            <groupId>org.springframework.restdocs</groupId>
            <artifactId>spring-restdocs-asciidoctor</artifactId>
            <version>${spring-restdocs.version}</version>
          </dependency>
        </dependencies>
      </plugin>
      <plugin>
        <artifactId>maven-resources-plugin</artifactId>
        <version>2.7</version>
        <executions>
          <execution>
            <id>copy-resources</id>
            <phase>prepare-package</phase>
            <goals>
              <goal>copy-resources</goal>
            </goals>
            <configuration>
              <outputDirectory>
                ${project.build.outputDirectory}/static/docs
              </outputDirectory>
              <resources>
                <resource>
                  <directory>
                    ${project.build.directory}/generated-docs
                  </directory>
                </resource>
              </resources>
            </configuration>
          </execution>
        </executions>
      </plugin>
    </plugins>
  </build>



  2-4 위 과정으로 생성된 snippet들은 최종 결과물에 참조되어 사용되는데 그 template을 main/asciidoc에 만든다.



= Brewery Order Service Docs
pilseong;
:doctype: book
:icons: font
:source-highlighter: highlightjs

Sample application demonstrating how to use Spring REST Docs with JUnit 5.

`BeerOrderControllerTest` makes a call to a very simple service and produces three
documentation snippets.

GET BEER

One showing how to make a request using cURL:

include::{snippets}/v1/beers-get/curl-request.adoc[]

One showing the HTTP request:

include::{snippets}/v1/beers-get/http-request.adoc[]

And one showing the HTTP response:

include::{snippets}/v1/beers-get/http-response.adoc[]

Response Body:
include::{snippets}/v1/beers-get/response-body.adoc[]

Response Fields:
include::{snippets}/v1/beers-get/response-fields.adoc[]

NEW BEER

One showing how to make a request using cURL:

include::{snippets}/v1/beers-new/curl-request.adoc[]

One showing the HTTP request:

include::{snippets}/v1/beers-new/http-request.adoc[]

And one showing the HTTP response:

include::{snippets}/v1/beers-new/http-response.adoc[]

Response Body:
include::{snippets}/v1/beers-new/response-body.adoc[]

Request Fields
include::{snippets}/v1/beers-new/request-fields.adoc[]

Response Fields:
include::{snippets}

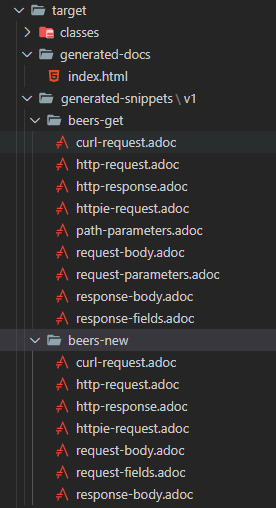

    2-4-1 예시로 index.adoc 파일로 아래를 보면 include를 통해 target/generated-snippets 아래에 있는 것들을 참조





    2-4-2 위의 generated-snippets의 생성하는 실제 코드를 보면 각 테스트의 andDo의 document메소드로 입력된다.

    2-4-3 아래 코드를 보면 @ExtendWith(RestDocumentationExtension.class)를 클래스에 지정하고 있다.

    2-4-4 @AutoConfigureRestDocs(uriScheme = "https", uriPort = 80) REST docs의 환경설정 기본값을 지정한다.

package pe.pilseong.sfgrestdocs.web.controller;

import static org.mockito.ArgumentMatchers.any;

import java.math.BigDecimal;
import java.util.Optional;
import java.util.UUID;

import com.fasterxml.jackson.databind.ObjectMapper;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.mockito.BDDMockito;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.restdocs.AutoConfigureRestDocs;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.boot.test.mock.mockito.MockBean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.http.MediaType;
import org.springframework.restdocs.RestDocumentationExtension;
import org.springframework.restdocs.constraints.ConstraintDescriptions;
import org.springframework.restdocs.payload.FieldDescriptor;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.util.StringUtils;

// import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.*;
import static org.springframework.restdocs.snippet.Attributes.*;
import static org.springframework.restdocs.payload.PayloadDocumentation.*;
import static org.springframework.restdocs.request.RequestDocumentation.*;
import static org.springframework.restdocs.mockmvc.MockMvcRestDocumentation.*;
import static org.springframework.restdocs.mockmvc.RestDocumentationRequestBuilders.*;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.*;

import pe.pilseong.sfgrestdocs.domain.Beer;
import pe.pilseong.sfgrestdocs.model.BeerDto;
import pe.pilseong.sfgrestdocs.model.BeerStyleEnum;
import pe.pilseong.sfgrestdocs.repository.BeerRepository;

@ExtendWith(RestDocumentationExtension.class)
@AutoConfigureRestDocs(uriScheme = "https", uriPort = 80)
@WebMvcTest(BeerController.class)
@ComponentScan(basePackages = "pe.pilseong.sfgrestdocs.web.mapper")
class BeerControllerTest {

  @Autowired
  MockMvc mockMvc;

  @Autowired
  ObjectMapper objectMapper;

  @MockBean
  BeerRepository beerRepository;

	BeerDto validBeer;

  @BeforeEach
	void setUp() {
		this.validBeer = BeerDto.builder()
			.beerName("San Miguel")
			.beerStyle(BeerStyleEnum.PILSNER)
			.upc(123123123L)
			.price(new BigDecimal(100))
			.build();
	}


  @Test
  void getBeerById() throws Exception {
    BDDMockito.given(beerRepository.findById(any(UUID.class))).willReturn(Optional.of(Beer.builder().build()));

    // with restdoc , I have to include beerid placeholder
    mockMvc.perform(get("/api/v1/beers/{beerId}", UUID.randomUUID().toString())
        .param("iscold", "yes")
        .accept(MediaType.APPLICATION_JSON))
      .andExpect(status().isOk())
      .andDo(document("v1/beers-get",
        pathParameters(
          parameterWithName("beerId").description("UUID of desired beer to get.")
        ),
        requestParameters(
          parameterWithName("iscold").description("Is Beer Cold Query param")
        ),
        responseFields(
          fieldWithPath("id").type("UUID").description("Id of beer"),
          fieldWithPath("version").type("Long").description("Version number"),
          fieldWithPath("createdDate").type("OffsetDateTime").description("Date Created"),
          fieldWithPath("lastModifiedDate").type("OffsetDateTime").description("Date Updated"),
          fieldWithPath("beerName").type("String").description("Beer Name"),
          fieldWithPath("beerStyle").type("BeerStyleEnum").description("Beer Style"),
          fieldWithPath("upc").type("Long").description("UPC of Beer"),
          fieldWithPath("price").type("BigDecimal").description("Price"),
          fieldWithPath("quantityOnHand").type("Integer").description("Quantity On Hand")
        )));
  }

  @Test
	void saveBeer() throws Exception {
		BeerDto beerDto = validBeer;
		String beerDtoJson = objectMapper.writeValueAsString(beerDto);

    ConstrainedFields fields = new ConstrainedFields(BeerDto.class);

		mockMvc.perform(post("/api/v1/beers/")
				.contentType(MediaType.APPLICATION_JSON)
				.content(beerDtoJson))
      .andExpect(status().isCreated())
      .andDo(document("v1/beers-new",
        requestFields(
          fields.withPath("id").ignored(),
          fields.withPath("version").ignored(),
          fields.withPath("createdDate").ignored(),
          fields.withPath("lastModifiedDate").ignored(),
          fields.withPath("beerName").description("Beer Name"),
          fields.withPath("beerStyle").description("Beer Style"),
          fields.withPath("upc").description("UPC of Beer"),
          fields.withPath("price").description("Price"),
          fields.withPath("quantityOnHand").ignored()
          // fieldWithPath("id").ignored(),
          // fieldWithPath("version").ignored(),
          // fieldWithPath("createdDate").ignored(),
          // fieldWithPath("lastModifiedDate").ignored(),
          // fieldWithPath("beerName").description("Beer Name"),
          // fieldWithPath("beerStyle").description("Beer Style"),
          // fieldWithPath("upc").description("UPC of Beer"),
          // fieldWithPath("price").description("Price"),
          // fieldWithPath("quantityOnHand").ignored()
        )));
	}

	@Test
	void updateBeerId() throws Exception {
		BeerDto beerDto = validBeer;
		String beerDtoJson = objectMapper.writeValueAsString(beerDto);

		mockMvc.perform(put("/api/v1/beers/"+UUID.randomUUID().toString())
				.contentType(MediaType.APPLICATION_JSON)
				.content(beerDtoJson))
			.andExpect(status().isNoContent());
  }

  private static class ConstrainedFields {
    private final ConstraintDescriptions constraintDescriptions;

    ConstrainedFields(Class<?> input) {
      this.constraintDescriptions = new ConstraintDescriptions(input);
    }

    private FieldDescriptor withPath(String path) {
      return fieldWithPath(path)
      .attributes(key("constraints")
      .value(StringUtils.collectionToDelimitedString(
        this.constraintDescriptions.descriptionsForProperty(path), ". ")));
    }
  }

}

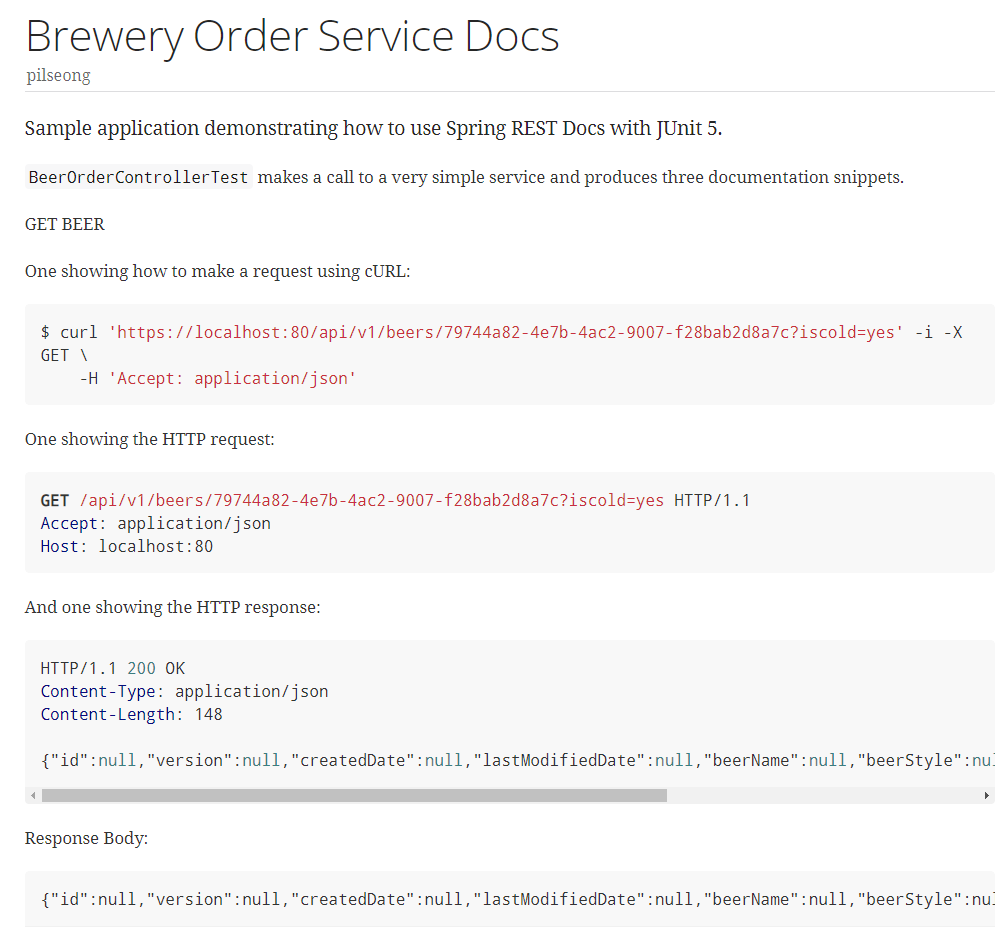

3. 결과로 나온 generated-docs의 index.html 문서이다.



index.html

0.04MB



  3-1  앞부분의 일부이다.





4. 결론은 직관적이지 않고 어렵다. 워낙 기능이 많아서 정신이 없지만 상당히 유용한 기능임은 틀림 없다.

  4-1 쓰면서 조금씩 확장하는 게 바람직한 학습인 것 같다. documentation을 보다가 질려서 덮었다 .ㅎㅎ
