Spring Boot : JDBC를 이용한 FootBall Club example 3. 선수 등록 검증로직 작성
Korean Eagle 2020. 6. 29. 15:151. 이 포스트는 축구 클럽 관리를 위한 테스트 프로젝트로 다양한 스프링 기능을 데모하기 위해 만들었다.
1-1 @Valid로 Model 객체 검증하기
1-2 체크 박스를 검증하는 방법
1-3 체크 박스의 에러 이전 데이터를 그대로 유지 하는 방법
1-4 메뉴 표출을 외부 메소드로 빼기
1-5 Entity 내부의 내장 객체가 있는 경우 View에서 받은 데이터로 그 내장 객체를 생성하는 방법
1-5-1 Converter 클래스를 작성하는 방법
1-6 #list.contains 같은 thymleaf 내장 객체 사용 방법
2. 선수 정보를 작성하고 저장을 했을 때 데이터를 받을 POST 메소드를 작성한다.
2-0 이 메소드는 검증로직이 있어 데이터가 정상적이지 않을 경우 다시 이전 페이지로 돌아가고 에러를 표시한다.
2-0-1 player 객체는 @Valid와 @ModelAttribute로 수식되어 검증객체임을 지정해야 한다.
2-0-2 검증객체의 에러여부는 다음인자로 Errors클래스를 상속한 BindingResult 객체로 받아온다.
package pe.pilseong.fooball.controller;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import java.util.stream.Collectors;
import javax.validation.Valid;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.convert.converter.Converter;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.SessionAttributes;
import lombok.extern.slf4j.Slf4j;
import pe.pilseong.fooball.entity.Player;
import pe.pilseong.fooball.entity.Skill;
import pe.pilseong.fooball.entity.Team;
import pe.pilseong.fooball.repository.PlayerRepository;
import pe.pilseong.fooball.repository.SkillRepository;
@Slf4j
@Controller
@RequestMapping("/players")
@SessionAttributes("team")
public class PlayerSkillController {
@Autowired
private SkillRepository skillRepository;
@Autowired
private PlayerRepository playerRepository;
@ModelAttribute(name = "player")
public Player player() {
return new Player();
}
@ModelAttribute(name = "team")
public Team team() {
return new Team();
}
@GetMapping
public String showPlayerSkill(Model model) {
setMenu(model);
model.addAttribute("checked", new ArrayList<>());
return "player-setting";
}
private void setMenu(Model model) {
List<Skill> skills = this.skillRepository.findAll();
Arrays.asList(Skill.Type.values()).stream().forEach(skill -> {
model.addAttribute(skill.toString().toLowerCase(),
skills.stream().filter(fetchedSkill ->
fetchedSkill.getType().toString().equals(skill.toString()))
.collect(Collectors.toList()));
});
}
@PostMapping
public String processPlayerSkill(@Valid @ModelAttribute Player player, BindingResult errors, Model model,
@ModelAttribute Team team) {
if (errors.hasErrors()) {
log.info("processPlayerSKill error info :::" + errors.toString());
log.info(player.toString());
setMenu(model);
// when errors occur, we have to make a list of selected skills before getting back to the view
model.addAttribute("checked",
player.getSkills().stream().map(skill->
skill.getId()
).collect(Collectors.toList())
);
return "player-setting";
}
log.info(player.toString());
team.addPlayer(player);
this.playerRepository.save(player);
log.info(team.toString());
return "redirect:/teams";
}
}
@Component
class LongToSkillConverter implements Converter<String, Skill> {
@Autowired
private SkillRepository skillRepository;
@Override
public Skill convert(String id) {
return this.skillRepository.findOne(Long.valueOf(id));
}
}
2-1 이전 페이지로 돌아갈 때 다시 메뉴를 받아서 구성해야 한다. 그래서 별도의 메소드로 작성하였다. (setMenu)
2-2 이 때 체크했던 항목들이 초기화되면 안된다. 따라서 별도의 체크리스트를 만들어서 제공해야 한다.
2-3 선수 Entity는 기술 List를 가지고 있는데,
2-3-1 View에서는 체크박스를 체크 시에 단순히 ID의 배열만 반환하기 때문에 Conversion이 필요하다.
2-3-2 컨버전 클래스를 따로 만들어야 하는데, 이 컨트롤러만 사용하기 때문에 이 파일에서 작성하였다.
2-3-3 이 컨버터는 스프링 코어의 Converter를 구현하고 프로그램에서 원하는 ID를 받아 Skill을 반환하고 있다.
2-3-4 ID로 데이터를 가져오는 부분은 SkillRepository를 사용하고 있다.
2-3-5 컨버터 소스는 위의 LongToSkillConverter 클래스를 참조한다.
2-3-6 Converter로 구현하기 싫을 때는 그냥 @InitBinder를 사용해도 된다. 아래는 소스코드이다.
@InitBinder
public void initBinder(WebDataBinder binder) {
binder.registerCustomEditor(List.class, "skills", new CustomCollectionEditor(List.class) {
protected Object convertElement(Object element) {
if (element != null) {
Long skillId = Long.parseLong(element.toString());
Skill skill = skillRepository.findById(skillId).get();
log.info("convertElement in CustomCollectionEditor :: " + skill);
return skill;
}
return element;
}
});
}
2-4 문제가 없을 때는 PlayerRepository를 통해서 저장하고 있는데 이 부분은 다음에 다룬다.
3. 이 컨트롤러에서 지정해 준 checked를 사용하여 기존의 checked 정보를 보여주는 부분을 view에 추가한다.
3-1 check box를 보면 th:checked="${ }" 가 있는데 이 부분은 ${ } 가 true가 되면 check box가 checked로 표시된다.
3-1-1 로직을 보면 #lists.contains(checked, skill.id)가 있는데,
3-1-2 #lists.contains는 thymleaf 함수로 첫번째인자로 List 두 번째인자는 검증 값이 들어 있다.
3-1-3 즉 checked라는 이름의 List안에 skill.id에 들어 있는 값과 일치하는 값이 있으면 true가 반환된다.
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">
<link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
integrity="sha384-Vkoo8x4CGsO3+Hhxv8T/Q5PaXtkKtu6ug5TOeNV6gBiFeWPGFN9MuhOf23Q9Ifjh" crossorigin="anonymous">
<title>Setting a player</title>
</head>
<body>
<div class="container">
<img class="img-fluid" th:src="@{ /images/football-ground.png }">
<h1 class="mt-2 mb-3">Setting a Player</h1>
<form method="POST" th:object="${player}">
<div th:if="${#fields.hasErrors()}">
<div class="py-1 alert alert-warning text-muted">Please correct the problems below and resubmit</div>
</div>
<div class="row">
<div class="card col-6">
<div class="card-body">
<h5 class="card-title">Shooting skills:</h5>
<p class="card-text">
<div class="form-check" th:each="skill : ${shooting}">
<input type="checkbox" class="form-check-input" name="skills"
th:checked="${#lists.contains(checked, skill.id)}"
th:value="${ skill.id }">
<span th:text="${ skill.name }" class="form-check-lable"></span>
</div>
</p>
</div>
</div>
<div class="card col-6">
<div class="card-body">
<h5 class="card-title">Passing skills:</h5>
<p class="card-text">
<div class="form-check" th:each="skill : ${passing}">
<input type="checkbox" class="form-check-input" name="skills"
th:checked="${#lists.contains(checked, skill.id)}"
th:value="${ skill.id }">
<span th:text="${ skill.name }" class="form-check-lable"></span>
</div>
</p>
</div>
</div>
</div>
<div class="row">
<div class="card col-6">
<div class="card-body">
<h5 class="card-title">Defensing skills:</h5>
<p class="card-text">
<div class="form-check" th:each="skill : ${defensing}">
<input type="checkbox" class="form-check-input" name="skills"
th:checked="${#lists.contains(checked, skill.id)}"
th:value="${ skill.id }">
<span th:text="${ skill.name }" class="form-check-lable"></span>
</div>
</p>
</div>
</div>
<div class="card col-6">
<div class="card-body">
<h5 class="card-title">Physical elements:</h5>
<p class="card-text">
<div class="form-check" th:each="skill : ${physical}">
<input type="checkbox" class="form-check-input" name="skills"
th:checked="${#lists.contains(checked, skill.id)}"
th:value="${ skill.id }">
<span th:text="${ skill.name }" class="form-check-lable"></span>
</div>
</p>
</div>
</div>
</div>
<div class="alert alert-danger text-muted mt-1 py-1 small"
th:if="${ #fields.hasErrors('skills') }"
th:errors="*{skills}"></div>
<div class="row">
<div class="card col-12">
<h3 class="my-3">Name your football player:</h3>
<div class="form-row">
<div class="form-group col-md-6">
<label for="firstname">First Name</label>
<input type="text" id="firstname" class="form-control mb-1"
th:field="*{firstName}" />
<span class="alert alert-secondary text-muted py-1 small"
th:if="${#fields.hasErrors('firstName')}"
th:errors="*{firstName}"></span>
</div>
<div class="form-group col-md-6">
<label for="lastname">Last Name</label>
<input type="text" id="lastname" class="form-control mb-1"
th:field="*{lastName}" />
<span class="alert alert-secondary text-muted py-1 small"
th:if="${#fields.hasErrors('lastName')}"
th:errors="*{lastName}"></span>
</div>
</div>
<div class="form-group">
<label for="salary">Salary</label>
<input type="text" id="salary" class="form-control mb-1"
th:field="*{salary}" />
<span class="alert alert-secondary text-muted py-1 small"
th:if="${#fields.hasErrors('salary')}"
th:errors="*{salary}"></span>
</div>
<button class="btn btn-primary mb-3">Player Submit</button>
</div>
</div>
</form>
</div>
</body>
</html>
4. 결과화면 - 최근에 MS의 신형 브라우저를 깔아서 썼는데 별로다 크롬이 최고다.

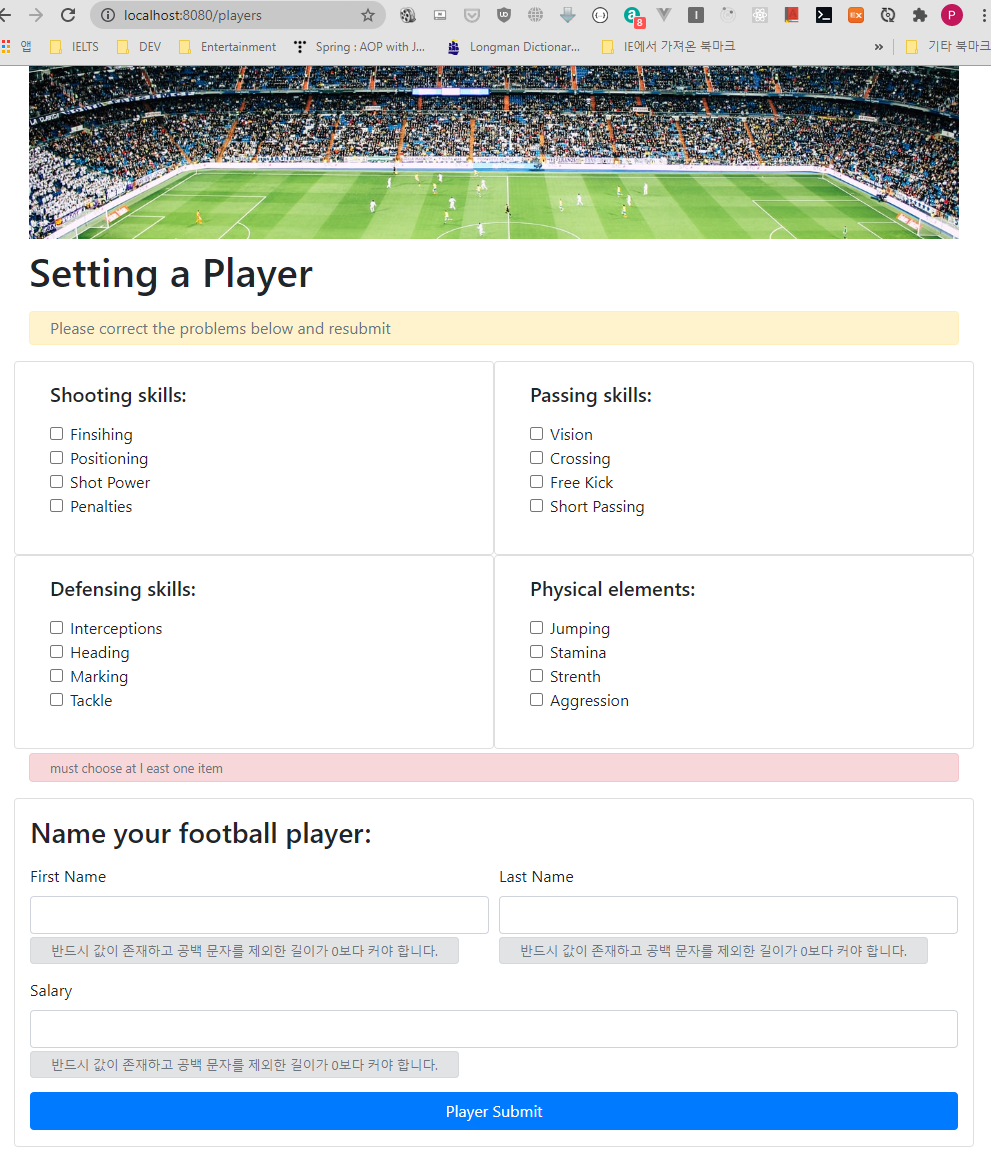

4-1 빈공백으로 Submit을 눌렀을 때 나오는 에러 안내 구문들이다.

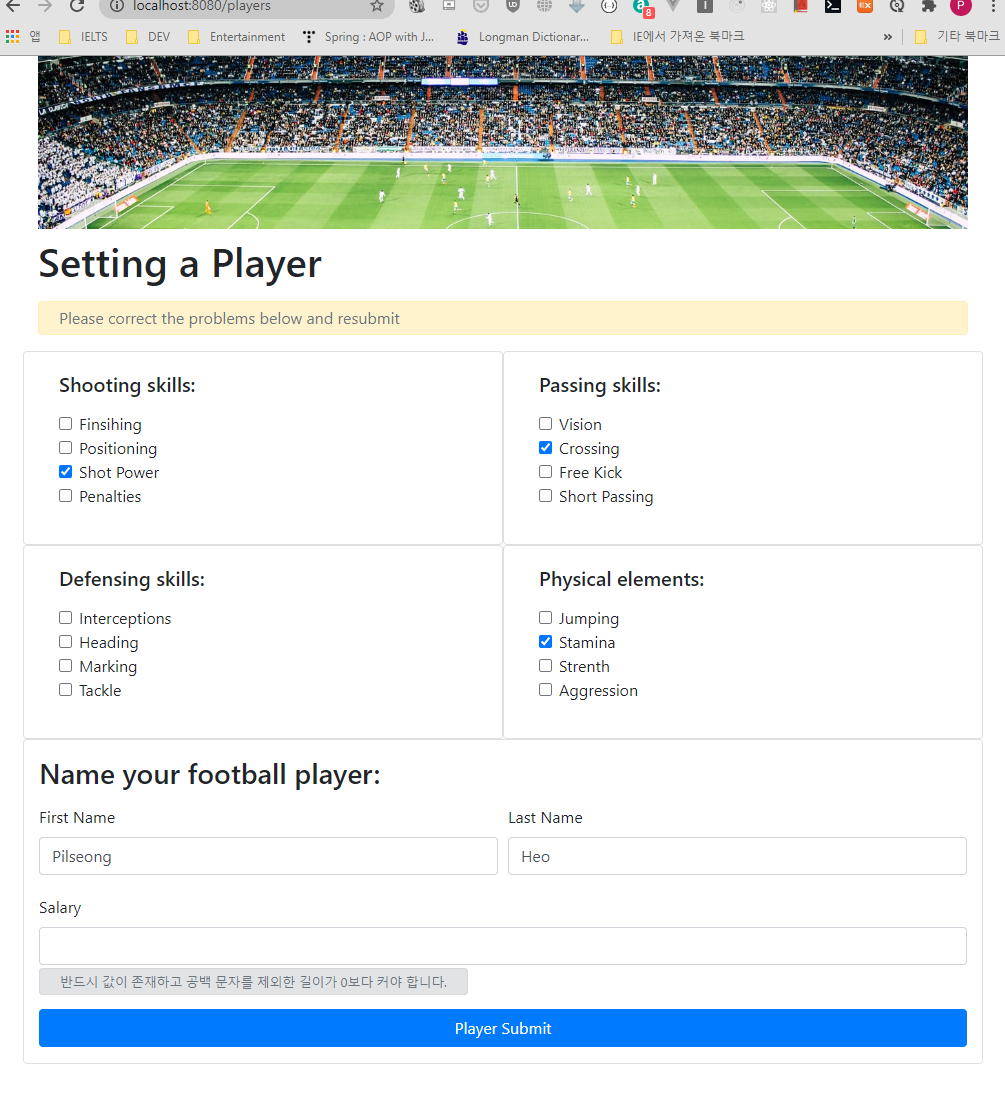

4-2 일부 필드만 에러가 발생하도록 비우고 Submit 했다.
4-2-1 에러가 발생하여 이전 페이지로 돌아갔는데 체크한 내용이 그대로 유지된다.
