BootStrap : WebJars

Korean Eagle 2020. 8. 3. 12:04
728x90

1. maven 은 webjar을 지원하고 있는데, bootstrap과 jquery가 가장 많이 사용된다.

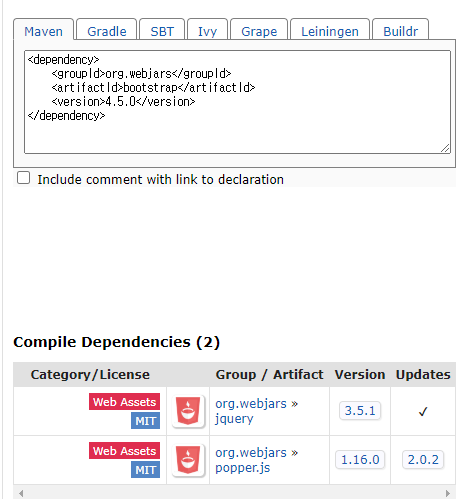

2. boostrap maven import를 찾아보면 아래의 코드가 들어가는데 mav repository에서 dependency를 찾아보면

  2-1 아래와 같이 bootstrap이 jqeury와 popper가 의존하고 있음을 알 수 있다.

  2-2 둘다 자동으로 dependency가 추가되어 별도의 webjar을 받을 필요가 없다.

  2-3 받는다고 하더라도 version은 설정하지 않는 것이 좋다.

  2-4 사용 전에 항상 의존성을 확인하여 어떤 버전을 사용하는지 확인 후 html에 반영해야 한다.





    <dependency>
      <groupId>org.webjars</groupId>
      <artifactId>bootstrap</artifactId>
      <version>4.5.0</version>
    </dependency>

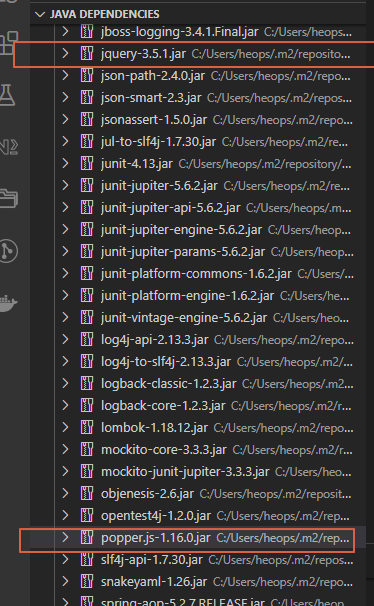

  2-4 실제 의존 구조 캡처





3. pom 파일



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.1.RELEASE</version>
    <relativePath /> <!-- lookup parent from repository -->
  </parent>
  <groupId>pe.pilseong</groupId>
  <artifactId>recipe</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <name>demo</name>
  <description>Demo project for Spring Boot</description>

  <properties>
    <java.version>11</java.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-thymeleaf</artifactId>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-devtools</artifactId>
      <scope>runtime</scope>
      <optional>true</optional>
    </dependency>
    <dependency>
      <groupId>com.h2database</groupId>
      <artifactId>h2</artifactId>
      <scope>runtime</scope>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <optional>true</optional>
    </dependency>
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-test</artifactId>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.webjars</groupId>
      <artifactId>bootstrap</artifactId>
      <version>4.5.0</version>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
      </plugin>
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-failsafe-plugin</artifactId>
        <version>3.0.0-M5</version>
        <executions>
          <execution>
            <goals>
              <goal>integration-test</goal>
              <goal>verify</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
    </plugins>
  </build>

</project>



4. html 페이지 사용 예시

  4-1 link와 script 테그에서 사용한 th:href, th:src는 프로그램에서 실행시에 해당 테그의 링크를 대체하게 된다.

    4-1-1 여기서는 로컬의 /webjars를 찾게 된다.



<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">

<head>
  <!-- Required meta tags -->
  <meta charset="utf-8">
  <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

  <!-- Bootstrap CSS -->
  <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/css/bootstrap.min.css"
    integrity="sha384-9aIt2nRpC12Uk9gS9baDl411NQApFmC26EwAOH8WgZl5MYYxFfc+NcPb1dKGj7Sk" crossorigin="anonymous"
    th:href="@{/webjars/bootstrap/4.5.0/css/bootstrap.min.css}">

  <title>Recipe Homer</title>
</head>

<body>
  <div class="container-fluid" style="margin-top: 20px">
    <div class="row">
      <div class="col-md-6 offset-md-3">
        <div class="card text-white bg-primary">
          <div class="card-body p-0">
            <div class="card-title">
              <p class="m-2 font-weight-bold">My Recipe</p>
            </div>
            <div class="card-text bg-white m-0 p-0" th:if="${not #lists.isEmpty(recipes)}">
              <table class="table table-hover m-0">
                <thead class="thead-white">
                  <tr>
                    <th>ID</th>
                    <th>Description</th>
                  </tr>
                </thead>
                <tbody>
                  <tr th:remove="all">
                    <td th:text="${recipe.id}">1</td>
                    <td th:text="${recipe.description}">Tasty Goodness 1</td>
                  </tr>
                  <tr th:remove="all">
                    <td th:text="${recipe.id}">2</td>
                    <td th:text="${recipe.description}">Tasty Goodness 2</td>
                  </tr>
                  <tr th:each="recipe : ${recipes}">
                    <td th:text="${recipe.id}">3</td>
                    <td th:text="${recipe.description}">Tasty Goodness 3</td>
                  </tr>
                </tbody>
              </table>
            </div>
          </div>
        </div>
      </div>
    </div>
  </div>
  <!-- Optional JavaScript -->
  <!-- jQuery first, then Popper.js, then Bootstrap JS -->
  <script src="https://code.jquery.com/jquery-3.5.1.slim.min.js"
    integrity="sha384-DfXdz2htPH0lsSSs5nCTpuj/zy4C+OGpamoFVy38MVBnE+IbbVYUew+OrCXaRkfj" crossorigin="anonymous"
    th:src="@{/webjars/jquery/3.5.1/jquery.min.js}">
  </script>
  <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js"
    integrity="sha384-Q6E9RHvbIyZFJoft+2mJbHaEWldlvI9IOYy5n3zV9zzTtmI3UksdQRVvoxMfooAo" crossorigin="anonymous"
    th:src="@{/webjars/popper.js/1.16.0/popper.min.js}">
  </script>
  <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.5.0/js/bootstrap.min.js"
    integrity="sha384-OgVRvuATP1z7JjHLkuOU7Xw704+h835Lr+6QL9UvYjZE3Ipu6Tp75j7Bh/kR0JKI" crossorigin="anonymous"
    th:src="@{/webjars/bootstrap/4.5.0/js/bootstrap.min.js}">
  </script>

</body>

</html>
