Spring Boot : JPA를 이용한 FootBall Club example

football-jpa.zip

2.35MB

1. 이 포스트는 지난 시리즈에 이어서 같은 프로그램을 JPA로 구현하는 것을 보여준다.

  1-1 화면과 데이터베이스 조회 결과는 이전 포스트를 참고한다.

Spring Basic : JDBC를 이용한 FootBall Club example 1. 환경설정

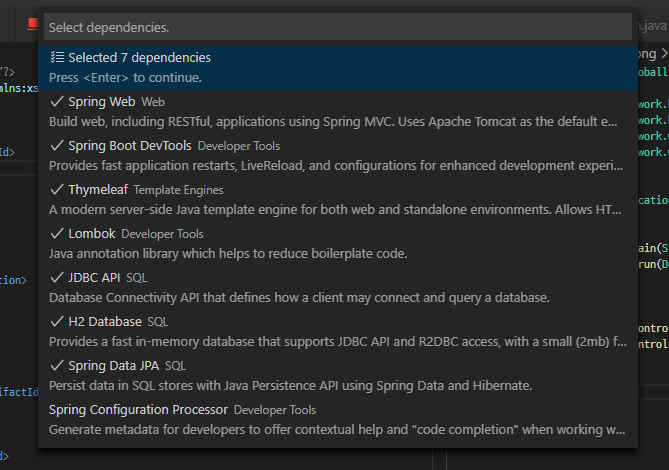

2. 지난 JdbcTemplate을 이용한 프로젝트에 Data-JPA starter를 추가한다.





3. JPA를 사용하기 때문에 Entity가 가장 중요하다.

  3-1 Skill Entity

    3-1-1 검증자는 그대로이고 JPA를 위한 annotationd을 추가하였다.

    3-1-2 Enum 타입의 type의 경우는 @Enumerated를 사용하여 데이터베이스에 문자열이 저장도록 지정하였다.

      3-1-2-1 @Enumerated를 지정하지 않으면 에러가 발생한다.

    3-1-3 불필요한 문제가 발생하지 않도록 모든 종류의 생성자를 지정하였다. noArgsConstructor, AllArgsConstructor



package pe.pilseong.footballjpa.entiry;

import javax.persistence.Entity;
import javax.persistence.EnumType;
import javax.persistence.Enumerated;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Entity
@Table(name = "skill")
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Skill {

  @Id
  @GeneratedValue(strategy = GenerationType.IDENTITY)
  private Long  id;

  private String name;

  @Enumerated(EnumType.STRING)
  private Type type;

  public static enum Type {
    SHOOTING, PASSING, DEFENSING, PHYSICAL
  }
}



  3-2 Player Entity

    3-2-1 Player는 내부에 Skill을 가지고 있으므로 관계세팅을 해 주어야 한다.

    3-2-2 Player와 Skill의 관계는 Many-To-Many이므로 설정하고 targetEntity를 관계하는 Skill.class를 지정한다.

      3-2-2-1 이렇게 지정하면 간략하게 관계테이블 player_skills를 만들어 준다.

      3-2-2-2 관계테이블의 이름은 자동으로 지정되고 속성도 자동을 player_id, skills_id로 지정된다.

      3-2-2-3 원하는대로 변경하고 싶으면 아래 링크를 참조한다.

Hibernate : Many-To-Many Mapping - Part 1

    3-2-3 createdAt 속성을 보면 @CreationTimestap가 지정되어 자동으로 시간이 등록되도록 설정하였다.



package pe.pilseong.footballjpa.entiry;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToMany;
import javax.persistence.Table;
import javax.validation.constraints.NotBlank;
import javax.validation.constraints.NotEmpty;

import org.hibernate.annotations.CreationTimestamp;

import lombok.Data;

@Entity
@Table(name = "player")
@Data
public class Player {

  @Id
  @GeneratedValue(strategy = GenerationType.IDENTITY)
  private Long id;

  @NotBlank
  @Column(name = "first_name")
  private String firstName;

  @NotBlank
  @Column(name = "last_name")
  private String lastName;

  @NotBlank
  private String salary;

  @Column(name = "created_at")
  @CreationTimestamp
  private Date createdAt;

  @NotEmpty(message = "must choose at l east one item")
  @ManyToMany(targetEntity = Skill.class)
  private List<Skill> skills = new ArrayList<>();
}



  3-3 Team Entity

    3-3-1 가장 눈에 띄는 부분은 @Embedded이다.

      3-3-1-1 외부 클래스를 사용할 때 사용하는 방법으로 외부 클래스 역시 @Embeddable로 설정되어야 한다.

    3-3-2 역시 팀과 선수는 Many-to-Many이므로 Player와 동일하게 간략한 관계 매핑을 설정하였다.

      3-3-2-1 당연히 team_players 관계테이블이 생성된다. 속성도 team_id, players_id로 지정된다.



package pe.pilseong.footballjpa.entiry;

import java.util.Date;
import java.util.HashSet;
import java.util.Set;

import javax.persistence.Column;
import javax.persistence.Embedded;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.ManyToMany;
import javax.persistence.Table;
import javax.validation.Valid;
import javax.validation.constraints.NotBlank;

import org.hibernate.annotations.CreationTimestamp;

import lombok.Data;

@Entity
@Table(name = "team")
@Data
public class Team {

  @Id
  @GeneratedValue(strategy = GenerationType.IDENTITY)
  private Long id;

  @NotBlank
  private String name;

  @Valid
  @Embedded
  private Address address = new Address();

  @Column(name = "created_at")
  @CreationTimestamp
  private Date createdAt;

  @ManyToMany(targetEntity = Player.class)
  private Set<Player> players = new HashSet<>();

  public void addPlayer(Player player) {
    this.players.add(player);
  }
}



    3-3-2 Address 클래스 설정



package pe.pilseong.footballjpa.entiry;

import javax.persistence.Embeddable;
import javax.validation.constraints.NotBlank;

import lombok.Data;

@Data
@Embeddable
public class Address {
  @NotBlank
  private String street;

  @NotBlank
  private String city;

  @NotBlank
  private String state;

  @NotBlank
  private String country;
}



4. 데이터베이스 설정파일 작성

  4-1 데이터베이스 이름은 testdb로 명시하였고,

  4-2 데이터베이스 생성은 jpa에 일임하여 자동생성하도록 하였다.



spring.datasource.url=jdbc:h2:mem:testdb
spring.jpa.hibernate.ddl-auto=create



  4-3 기본 데이터 로딩

    4-3-1 classpath에 data.sql을 아래 처럼 작성한다. 지난 번과 동일하나 delete에 테이블 이름을 바꿔야 한다.



delete from player;

delete from skill;

delete from player_skills;

delete from team;

delete from team_players;

insert into skill(name, type) values('Finsihing', 'SHOOTING');
insert into skill(name, type) values('Positioning', 'SHOOTING');
insert into skill(name, type) values('Shot Power', 'SHOOTING');
insert into skill(name, type) values('Penalties', 'SHOOTING');
insert into skill(name, type) values('Vision', 'PASSING');
insert into skill(name, type) values('Crossing', 'PASSING');
insert into skill(name, type) values('Free Kick', 'PASSING');
insert into skill(name, type) values('Short Passing', 'PASSING');
insert into skill(name, type) values('Interceptions', 'DEFENSING');
insert into skill(name, type) values('Heading', 'DEFENSING');
insert into skill(name, type) values('Marking', 'DEFENSING');
insert into skill(name, type) values('Tackle', 'DEFENSING');
insert into skill(name, type) values('Jumping', 'PHYSICAL');
insert into skill(name, type) values('Stamina', 'PHYSICAL');
insert into skill(name, type) values('Strenth', 'PHYSICAL');
insert into skill(name, type) values('Aggression', 'PHYSICAL');



5. 데이터베이스 접근 모듈 작성

  5-1 SkillRepository



package pe.pilseong.footballjpa.repository;

import org.springframework.data.jpa.repository.JpaRepository;

import pe.pilseong.footballjpa.entiry.Skill;


public interface SkillRepository extends JpaRepository<Skill, Long>{
}



  5-2 PlayerRepository



package pe.pilseong.footballjpa.repository;

import org.springframework.data.jpa.repository.JpaRepository;

import pe.pilseong.footballjpa.entiry.Player;

public interface PlayerRepository extends JpaRepository<Player, Long> {
}



  5-3 TeamRepository



package pe.pilseong.footballjpa.repository;

import org.springframework.data.jpa.repository.JpaRepository;

import pe.pilseong.footballjpa.entiry.Team;

public interface TeamRepository extends JpaRepository<Team, Long>{
}



6. Controller들

  6-1 선수 생성 관련 컨트롤러

    6-1-1 바뀐 부분은 Converter에서 findOne대신 findById를 사용한 부분이고

    6-1-1 Optional이 반환되므로 get()으로 받아와야 한다.



package pe.pilseong.footballjpa.controller;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
import java.util.stream.Collectors;

import javax.validation.Valid;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.convert.converter.Converter;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.SessionAttributes;

import lombok.extern.slf4j.Slf4j;
import pe.pilseong.footballjpa.entiry.Player;
import pe.pilseong.footballjpa.entiry.Skill;
import pe.pilseong.footballjpa.entiry.Team;
import pe.pilseong.footballjpa.repository.PlayerRepository;
import pe.pilseong.footballjpa.repository.SkillRepository;

@Slf4j
@Controller
@RequestMapping("/players")
@SessionAttributes("team")
public class PlayerSkillController {

  @Autowired
  private SkillRepository skillRepository;

  @Autowired
  private PlayerRepository playerRepository;

  @ModelAttribute(name = "player")
  public Player player() {
    return new Player();
  }

  @ModelAttribute(name = "team")
  public Team team() {
    return new Team();
  }

  @GetMapping
  public String showPlayerSkill(Model model) {

    setMenu(model);

    model.addAttribute("checked", new ArrayList<>());
    return "player-setting";
  }

  private void setMenu(Model model) {
    List<Skill> skills = this.skillRepository.findAll();

    Arrays.asList(Skill.Type.values()).stream().forEach(skill -> {
      model.addAttribute(skill.toString().toLowerCase(),
          skills.stream().filter(fetchedSkill -> fetchedSkill.getType().toString().equals(skill.toString()))
              .collect(Collectors.toList()));
    });
  }

  @PostMapping
  public String processPlayerSkill(@Valid @ModelAttribute Player player, BindingResult errors, Model model,
    @ModelAttribute Team team) {

    if (errors.hasErrors()) {

      log.info("processPlayerSKill error info :::" + errors.toString());

      log.info(player.toString());

      setMenu(model);

      model.addAttribute("checked",
        player.getSkills().stream().map(skill->
          skill.getId()
        ).collect(Collectors.toList())
      );
      return "player-setting";
    }

    log.info(player.toString());

    team.addPlayer(player);

    this.playerRepository.save(player);

    log.info(team.toString());
    return "redirect:/teams";
  }

}

@Component
class LongToSkillConverter implements Converter<String, Skill> {

  @Autowired
  private SkillRepository skillRepository;

  @Override
  public Skill convert(String id) {
    return this.skillRepository.findById(Long.valueOf(id)).get();
  }
}



  6-2 팀 생성 컨트롤러

    6-2-1 변경된 코드가 없다.



package pe.pilseong.footballjpa.controller;

import javax.validation.Valid;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.validation.BindingResult;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.SessionAttribute;
import org.springframework.web.bind.annotation.SessionAttributes;
import org.springframework.web.bind.support.SessionStatus;

import lombok.extern.slf4j.Slf4j;
import pe.pilseong.footballjpa.entiry.Team;
import pe.pilseong.footballjpa.repository.TeamRepository;

@Slf4j
@Controller
@RequestMapping("/teams")
@SessionAttributes("team")
public class TeamController {

  @Autowired
  private TeamRepository teamRepository;

  @GetMapping
  public String showTeamSetup(@SessionAttribute(required = false) Team team) {
    log.info("showTeamSetup in TeamController");

    if (team == null || team.getPlayers().size() == 0) {
      return "redirect:/players";
    }

    return "team-creation";
  }

  @PostMapping
  public String processTeamSetup(@Valid @ModelAttribute Team team, BindingResult errors, SessionStatus status) {
    if (errors.hasErrors()) {
      return "team-creation";
    }

    this.teamRepository.save(team);
    log.info("processTeamSetup in TeamController :: " + team.toString() + "\n");

    status.setComplete();

    return "redirect:/";
  }
}



7. View - 바뀐 부분이 전혀 없다.

  7-1 home.html



<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">

<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">
  <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
    integrity="sha384-Vkoo8x4CGsO3+Hhxv8T/Q5PaXtkKtu6ug5TOeNV6gBiFeWPGFN9MuhOf23Q9Ifjh" crossorigin="anonymous">
  <title>Welcome to FootBall Club</title>
</head>

<body>
  <div class="container">
    <img class="img-fluid" th:src="@{ /images/football-ground.jpg }">

    <h1 class="mt-2 mb-3">Welcome to FootBall Club</h1>
    <a class="link" href="/players">Push this button to get started</a>
  </div>
</body>

</html>



  7-2 player-setting.html



<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">

<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">
  <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
    integrity="sha384-Vkoo8x4CGsO3+Hhxv8T/Q5PaXtkKtu6ug5TOeNV6gBiFeWPGFN9MuhOf23Q9Ifjh" crossorigin="anonymous">
  <title>Setting a player</title>
</head>

<body>
  <div class="container">
    <img class="img-fluid" th:src="@{ /images/football-ground.png }">

    <h1 class="mt-2 mb-3">Setting a Player</h1>

    <form method="POST" th:object="${player}">
      <div th:if="${#fields.hasErrors()}">
        <div class="py-1 alert alert-warning text-muted">Please correct the problems below and resubmit</div>
      </div>
      <div class="row">
        <div class="card col-6">
          <div class="card-body">
            <h5 class="card-title">Shooting skills:</h5>
            <p class="card-text">
              <div class="form-check" th:each="skill : ${shooting}">
                <input type="checkbox" class="form-check-input" name="skills"
                  th:checked="${#lists.contains(checked, skill.id)}"
                  th:value="${ skill.id }">
                <span th:text="${ skill.name }" class="form-check-lable"></span>
              </div>
            </p>
          </div>
        </div>
        <div class="card col-6">
          <div class="card-body">
            <h5 class="card-title">Passing skills:</h5>
            <p class="card-text">
              <div class="form-check" th:each="skill : ${passing}">
                <input type="checkbox" class="form-check-input" name="skills"
                  th:checked="${#lists.contains(checked, skill.id)}"
                  th:value="${ skill.id }">
                <span th:text="${ skill.name }" class="form-check-lable"></span>
              </div>
            </p>
          </div>
        </div>
      </div>
      <div class="row">
        <div class="card col-6">
          <div class="card-body">
            <h5 class="card-title">Defensing skills:</h5>
            <p class="card-text">
              <div class="form-check" th:each="skill : ${defensing}">
                <input type="checkbox" class="form-check-input" name="skills"
                  th:checked="${#lists.contains(checked, skill.id)}"
                  th:value="${ skill.id }">
                <span th:text="${ skill.name }" class="form-check-lable"></span>
              </div>
            </p>
          </div>
        </div>
        <div class="card col-6">
          <div class="card-body">
            <h5 class="card-title">Physical elements:</h5>
            <p class="card-text">
              <div class="form-check" th:each="skill : ${physical}">
                <input type="checkbox" class="form-check-input" name="skills"
                  th:checked="${#lists.contains(checked, skill.id)}"
                  th:value="${ skill.id }">
                <span th:text="${ skill.name }" class="form-check-lable"></span>
              </div>
            </p>
          </div>
        </div>
      </div>
      <div class="alert alert-danger text-muted mt-1 py-1 small" th:if="${ #fields.hasErrors('skills') }"
      th:errors="*{skills}"></div>
      <div class="row">
        <div class="card col-12">
          <h3 class="my-3">Name your football player:</h3>
          <div class="form-row">
            <div class="form-group col-md-6">
              <label for="firstname">First Name</label>
              <input type="text" id="firstname" class="form-control mb-1" th:field="*{firstName}" />
              <span class="alert alert-secondary text-muted py-1 small" th:if="${#fields.hasErrors('firstName')}"
                th:errors="*{firstName}"></span>
            </div>
            <div class="form-group  col-md-6">
              <label for="lastname">Last Name</label>
              <input type="text" id="lastname" class="form-control mb-1" th:field="*{lastName}" />
              <span class="alert alert-secondary text-muted py-1 small" th:if="${#fields.hasErrors('lastName')}"
                th:errors="*{lastName}"></span>
            </div>
          </div>
          <div class="form-group">
            <label for="salary">Salary</label>
            <input type="text" id="salary" class="form-control mb-1" th:field="*{salary}" />
            <span class="alert alert-secondary text-muted py-1 small" th:if="${#fields.hasErrors('salary')}"
                th:errors="*{salary}"></span>
          </div>
          <button class="btn btn-primary mb-3">Player Submit</button>
        </div>
      </div>
    </form>
  </div>
</body>

</html>



  7-3 team-creation.html



<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">

<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">
  <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"
    integrity="sha384-Vkoo8x4CGsO3+Hhxv8T/Q5PaXtkKtu6ug5TOeNV6gBiFeWPGFN9MuhOf23Q9Ifjh" crossorigin="anonymous">
  <title>Setting a Team</title>
</head>

<body>
  <div class="container">
    <img class="img-fluid" th:src=" @{ /images/football-ground.png }" alt="">
    <h1 class="mt-2 mb-3">Set your own team</h1>

    <a class="btn btn-secondary mb-3" th:href=" @{ /players } " id="another">Register Another Player</a><br />

    <form method="POST" th:object="${team}">
      <div th:if="${ #fields.hasErrors() }">
        <div class="py-1 alert alert-warning text-muted">Please correct the problems below and resubmit</div>
      </div>
      <div class="card">
        <div class="card-body">
          <h5 class="card-title">Specific information of your team ...</h5>
          <p class="card-text">
            <div class="form-group">
              <label for="name">Name: </label>
              <input class="form-control mb-1" type="text" th:field="*{name}" />
              <span class="alert alert-secondary text-muted py-1 small" th:if="${ #fields.hasErrors('name') }"
                th:errors="*{name}"></span>
            </div>
            <div class="form-group">
              <label for="street">Street address: </label>
              <input class="form-control mb-1" type="text" th:field="*{address.street}" />
              <span class="alert alert-secondary text-muted py-1 small" th:if="${ #fields.hasErrors('address.street') }"
                th:errors="*{address.street}"></span>
            </div>
            <div class="form-group">
              <label for="city">City: </label>
              <input class="form-control mb-1" type="text" th:field="*{address.city}" />
              <span class="alert alert-secondary text-muted py-1 small" th:if="${ #fields.hasErrors('address.city') }"
                th:errors="*{address.city}"></span>
            </div>
            <div class="form-group">
              <label for="state">State: </label>
              <input class="form-control mb-1" type="text" th:field="*{address.state}" />
              <span class="alert alert-secondary text-muted py-1 small" th:if="${ #fields.hasErrors('address.state') }"
                th:errors="*{address.state}"></span>
            </div>
            <div class="form-group">
              <label for="zip">Country: </label>
              <input class="form-control mb-1" type="text" th:field="*{address.country}" />
              <span class="alert alert-secondary text-muted py-1 small"
                th:if="${ #fields.hasErrors('address.country') }" th:errors="*{address.country}"></span>
            </div>
            <input class="btn btn-primary" type="submit" value="Submit Order">
          </p>
        </div>
      </div>
    </form>
  </div>
</body>

</html>



8. 마지막으로 기동 Main 클래스 - 역시 바뀐 부분이 없다.



package pe.pilseong.footballjpa;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.servlet.config.annotation.ViewControllerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@SpringBootApplication
public class DemoApplication implements WebMvcConfigurer {

	public static void main(String[] args) {
		SpringApplication.run(DemoApplication.class, args);
	}

	@Override
	public void addViewControllers(ViewControllerRegistry registry) {
		registry.addViewController("/").setViewName("home");
	}
}
